Mastercard Visa EMV ISO14443 Contactless Card Reader and Writer

13.56MHz USB/RS232 MIFARE NFC Smart Card Reader For Access Control

Product description:

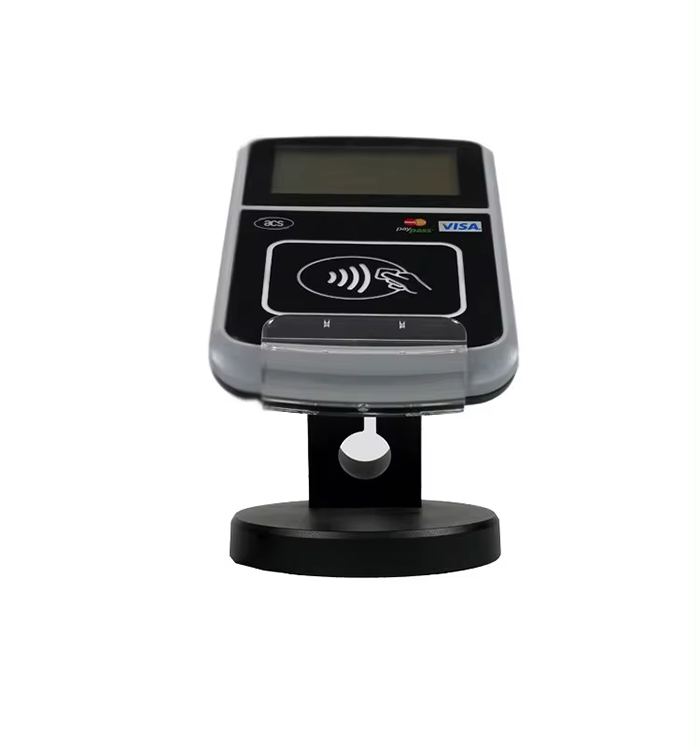

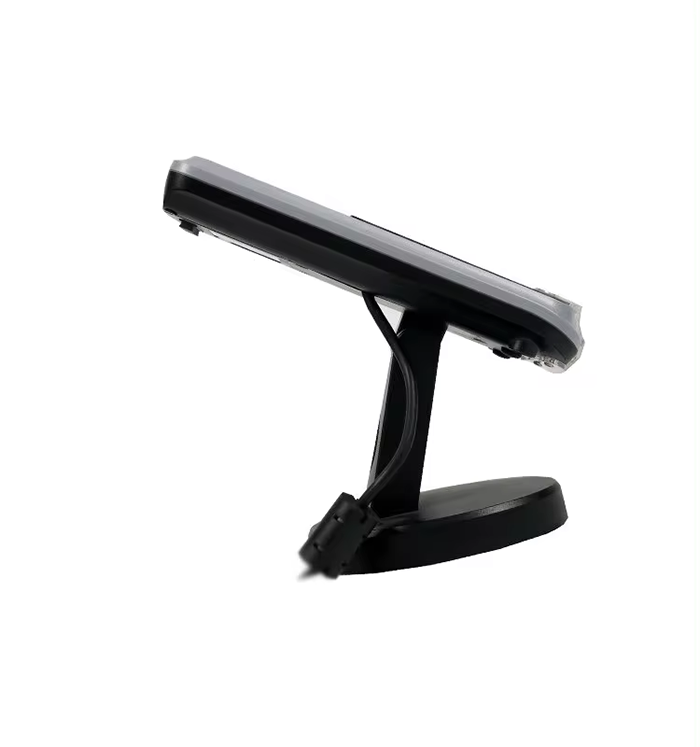

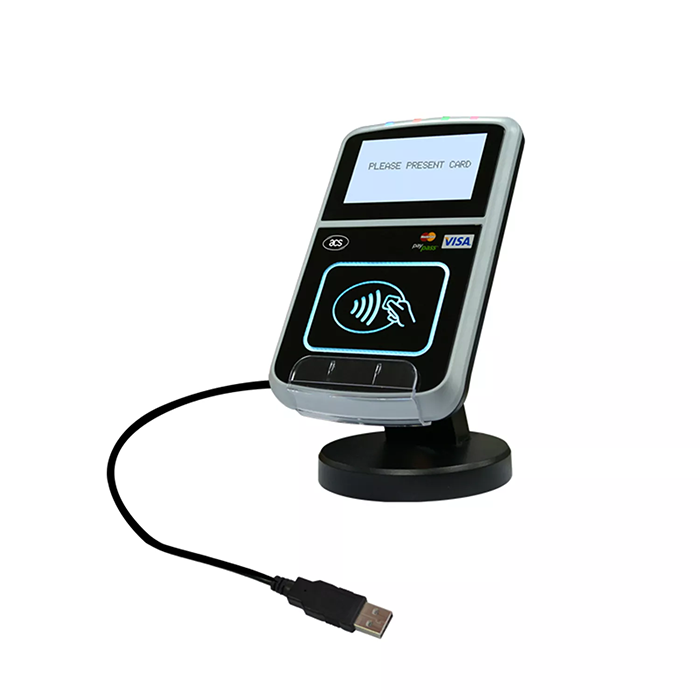

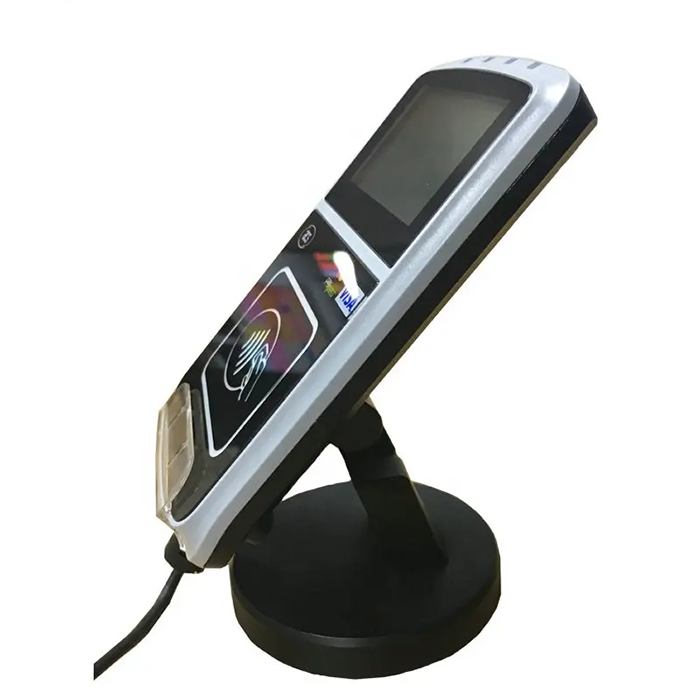

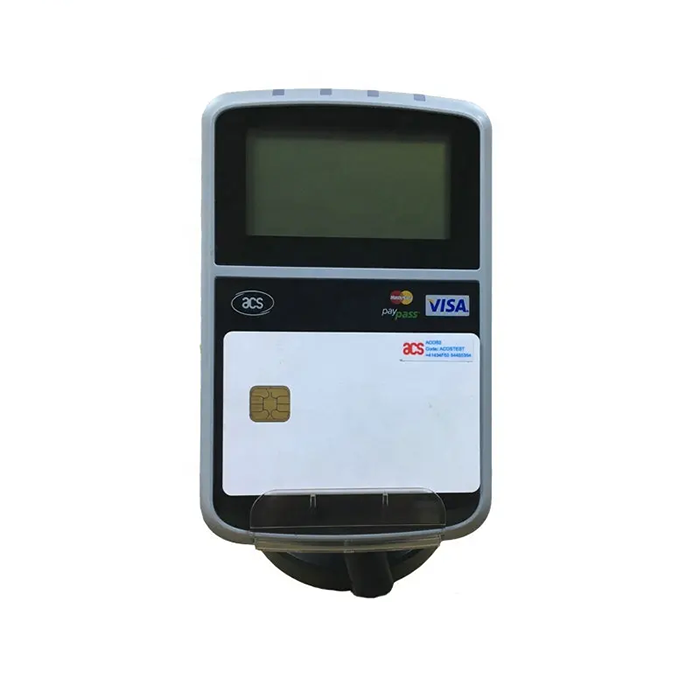

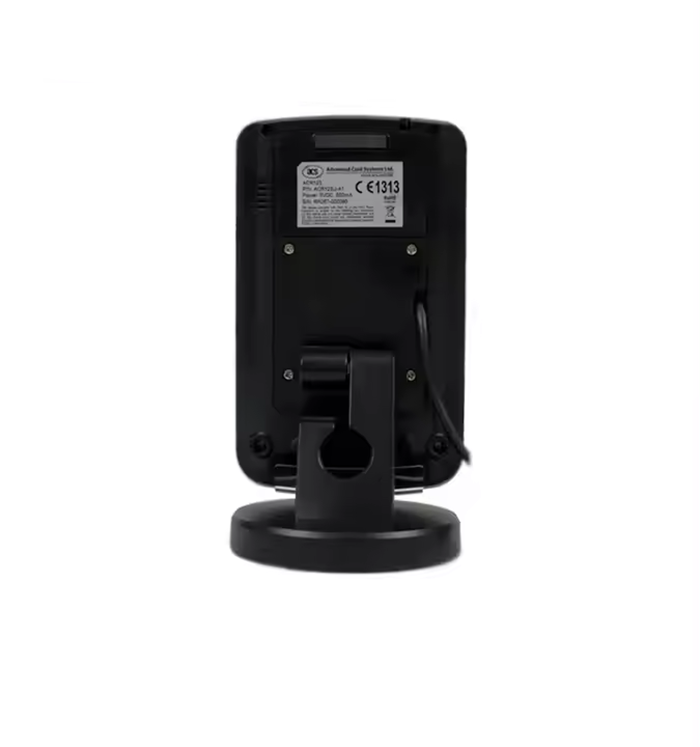

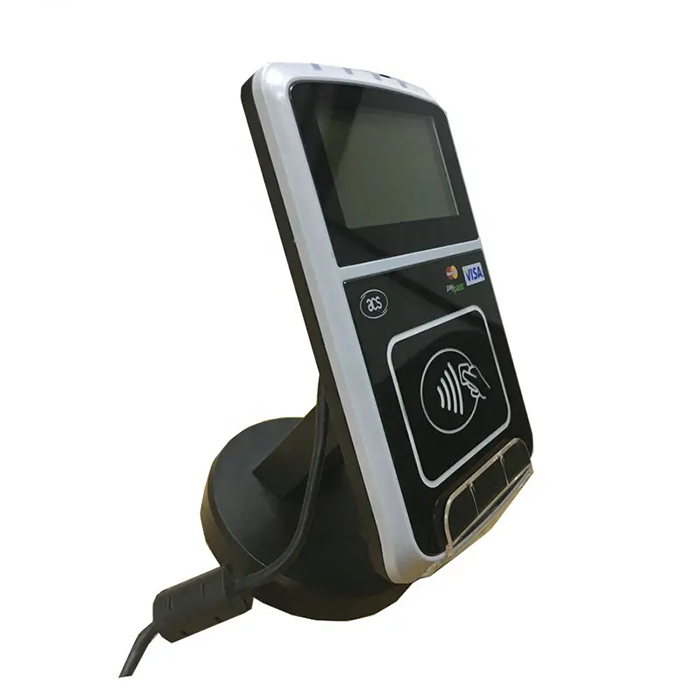

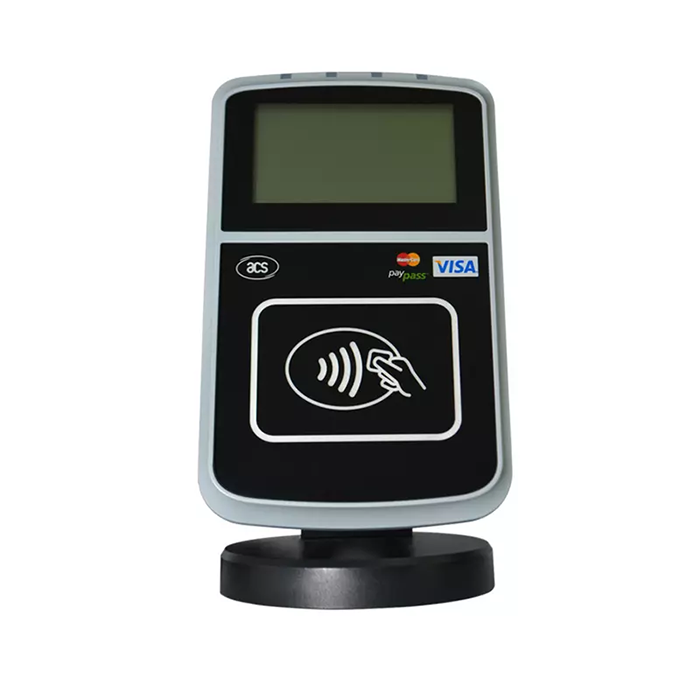

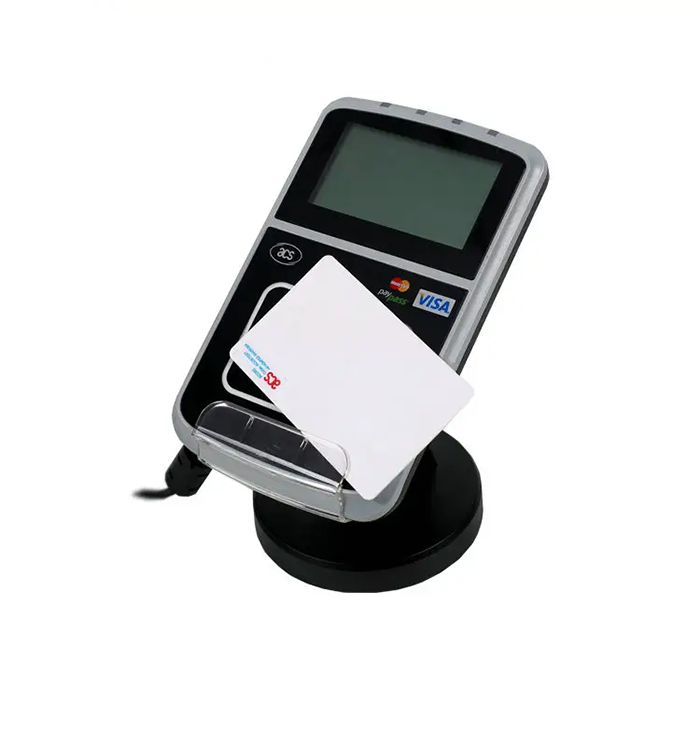

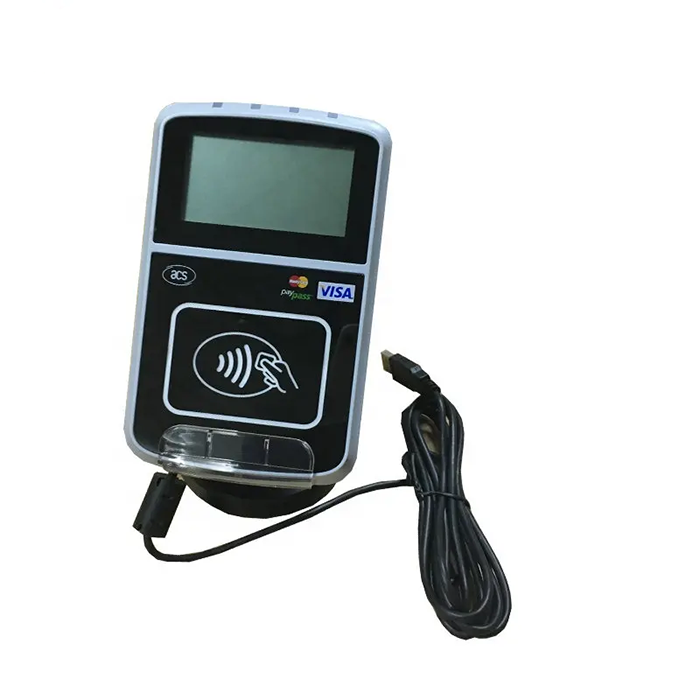

The ACR123 is a cost-effective and flexible contactless smart reader. It can be integrated with existing point-of-sale (POS) terminals or cash registers to make cashless payment systems more convenient.The ACR123 was developed based on 13.56 MHz contactless (RFID) technology and supports all contactless cards compliant with ISO 14443-4. In addition to its advanced contactless features, the ACR123 is equipped with a large graphic LCD screen for merchants to display information, plus a large backlit swipe area to guide customers through payment transactions. The ACR123 is a quality and reliable device. It complies with major payment and security standards and certifications such as MasterCard®, Visa and EMVCo Contactless Terminal Level 1. In addition, the ACR123 is compatible with EMV-based contactless payment applications including MasterCard® PayPass™ and Visa payWave®. With the help of the ACR123, customers can complete payment transactions with just a swipe of their card, greatly increasing the speed of cash collection at the register. This more convenient and faster payment application will surely bring us a brand new shopping experience!

Product Features:

• RS232 serial interface or USB 2.0 full-speed interface

• USB-powered interface

• ARM 32-bit Cortex™-M3 processor

• Smart card reader/writer:

• Reading/writing speed up to 848 kbps

• Built-in antenna for reading/writing contactless cards, with a reading distance of up to 50 mm (depending on card type)

• Supports ISO 14443 Part 4 Type A and Type B cards, as well as Mifare series cards

• Built-in anti-collision feature

• 3 SAM slots compliant with ISO 7816 standards

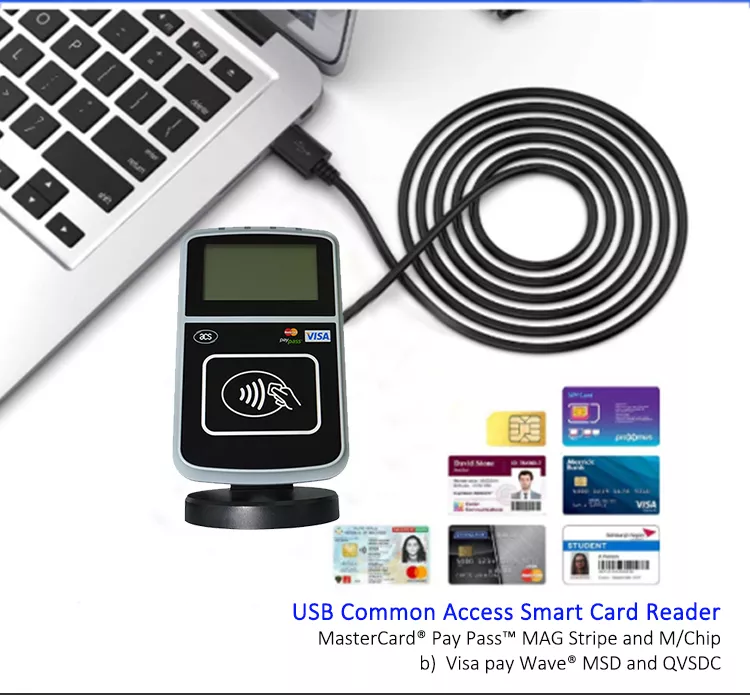

• Payment applications:

• MasterCard® PayPass™ magnetic stripe and M/Chip

• Visa payWave® MSD and qVSDC

• Built-in peripherals:

• Four-line graphic LCD display (128 x 64 pixels)

• Four user-controllable LEDs (blue, yellow, green, and red)

• Controllable backlight for card swipe area (red, green, and blue)

• User-controllable speaker (audio indicator)

• Micro-SD card slot

• Compliant with the following standards:

• ISO 14443

• EMVCo Contactless Terminal L1

• MasterCard® PayPass™

• Visa payWave®

• CE

• FCC

• VCCI

• RoHS

Product Applications:

• E-Government

• E-Banking and E-Payment

• E-Healthcare

• Public Transportation

• Network Security

• Access Control

• Customer Loyalty Programs
