80mm Thermal Receipt Printer for restaurants supermarkets coffee shops

80mm Thermal Receipt Printer for restaurants supermarkets coffee shops


They are commonly used in retail stores for printing receipts at the point of sale. They are also used in logistics and shipping for printing labels with barcodes or tracking information. In the healthcare industry, thermal printers are used for printing patient wristbands and prescription labels. Furthermore, thermal printers find applications in ticketing systems, parking lots, and various other industries where quick and reliable printing is required.


thermal ticket printer 13


Features:

1.160, 200, 260 mm/SEC low noise, high speed printing ;

 2.simplified/traditional can translate freely through the instructions;

 3.Support the cashbox drive and bring hanging function ;

 4.support across a network segment to modify IP;

 5.Support retype it & support queue;

 6.Support online upgrade IAP, save time, save worry;

 7.Support NVLOGO download print images (image format for BMP);

 8.Support the print head over temperature protection function, let the life of the print head for a long time ;

 9.with the function of automatic paper cutting, the knife ;

 10.support preventing function, prevent card knife;

 11.Support to prompt and error reporting function;

 12.support from single function, prevent losing ;

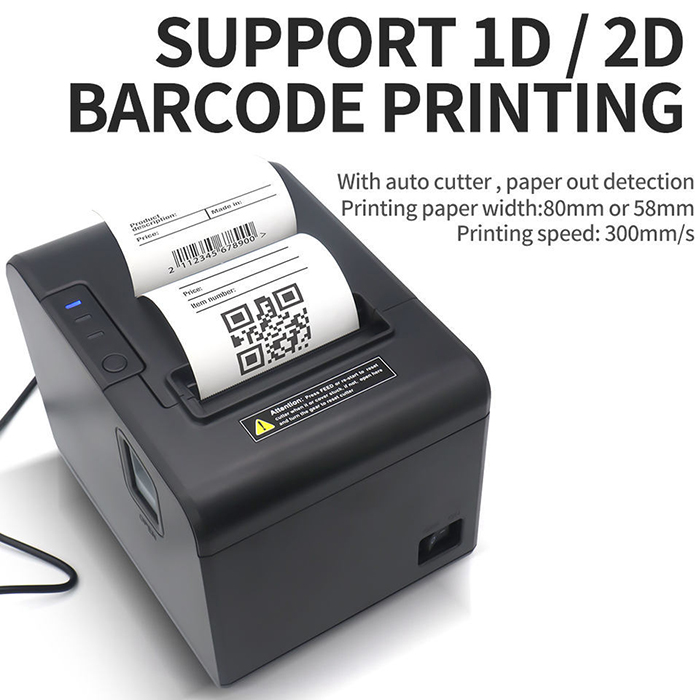

 13.support for multiple one-dimensional bar code printing;


Printing
Printing methodDirect thermal
Paper roll width79.5±0.5mm
Print width72mm
Column capacity576 dots/line/ 512 dots/line (adjustable by command)

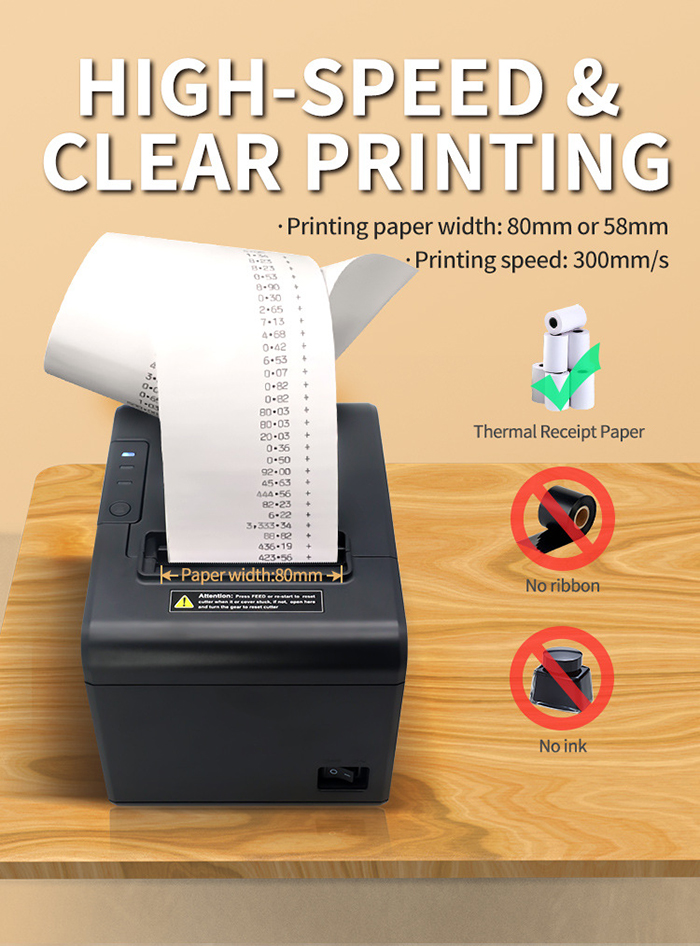

Printing speed160mm/s, 200mm/s , 260mm/s
InterfaceUSB+Lan/USB+Serial/USB+Serial+Lan   (Optional:Bluetooth/WIFI)
Line spacing3.75mm (Adjustable by commands)
Character sizePC347 (Standard Europe) 、Katakana, PC850 (Multilingual) PC860 (Portuguese) 、
    PC863 (Canadian-French) 、PC865 (Nordic) West Europe, Greek,   Hebrew. East
    Europe, Iran, WPC1252, PC866 (Cyrillic#2) 、PC852 (Latin2) 、PC858, Iranll, Latvian,
    Arabic.PT151 ( 1251)
Cutter
Auto cutterPartial
Barcode Character
Extension character
    sheet
PC347(Standard   Europe)、Katakana 、PC850(Multilingual)、PC860
    (Portuguese)、PC863(Canadian-French)、PC865(Nordic)、West Europe、
    Greek 、Hebrew 、East   Europe 、Iran 、WPC1252 、PC866(Cyrillic#2)、PC852
    (Latin2)、PC858 、IranII 、Latvian   、Arabic、PT151(1251)
1D BarcodeUPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)
    /CODE39/ITF/CODABAR/CODE93/CODE128
2D BarcodeQR CODE / PDF417
Input buffer2048 Kbytes
NV Flash256 Kbytes
Power
Power adaptorInput:AC   240V, 50~60Hz     Output: DC 24V/2.5A
Printer inputDC 24V/2.5A
Cash drawer outputDC 24V/ 1A
Physical characteristics
Weight1 Kg
Dimensions190.16* 140* 134.64mm(D*W*H)
Environmental Requirements
Operation environmentTemperature (0~45℃)  humidity( 10~80%)
Storage environmentTemperature(-10~60℃)   humidity( 10~80%)
Reliability
Cutter life1.5 million cuts
Printer head life150 KM
Software
EmulationESC/POS
DriverWindows/Linux/Android/OPOS
UtilityWindows & Linux test Utility
SDKAndroid/Windows
