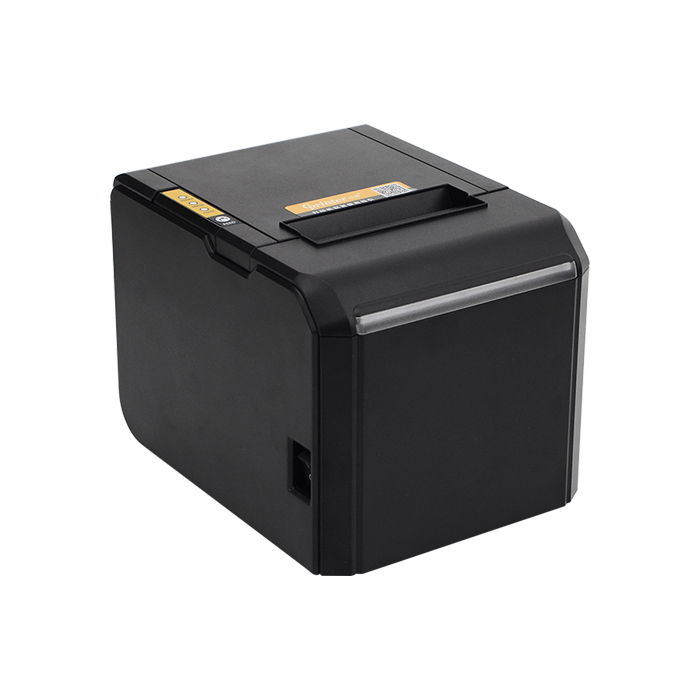

Fast-speed 3" Thermal Receipt Printer with Auto Cutter, USB/Cash Drawer connection
The Trekgear POS range offers reliable equipment to suit a wide variety of Point of Sale (POS) situations and business needs. The solutions are designed for retail, service-type businesses or the food and beverage industry.
The Trekgear Thermal POS Receipt Printers are perfect for situations such as customer checkout and food and beverage operations. The printer is compatible with ESC/POS printing commands and offers high-speed, stable printing and auto-cutter functionality.
Features:
Wide compatibility with most types of business software
High-speed, stable with low-noise printing

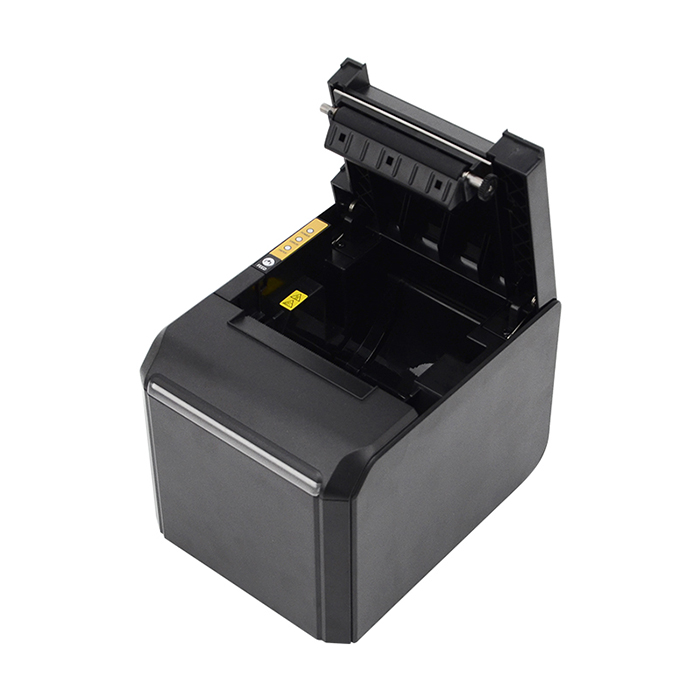

Easy paper loading system
Compatible with POS/ESC command set
Thermal printing, no need for ink ribbon and toner
Work with standard 80mm thermal paper
Advantages:
• High-speed printing: supports up to 300MM/S printing speed;
• Printing direction: multiple printing methods, support Horizontal/Vertical/Wall-Mounted Placement
• Consumables compatibility: supports thermal paper roll, thermal eco-friendly paper roll and thermal black mark paper roll;
• NV Flash: supports printing NV Logo with the size no less than 512KB;
• Reminder for receipt not taken away to avoid orders missing
Audible and visual alarm loud volume reminder
• Supports Chinese character mode/international mode;
• Auto-reprint efficiently when the paper runs out.
| Print method | Direct thermal |
| Print command | Compatible with ESC/POS, Star commands |
| Resolution | 203DPI |
| Print speed | 300mm/s |
| Print width | 72mm |
| Print head temperature detect | Thermal sensitive resistance |
| Print head position detect | Microswitch |
| Paper detect | Transmissive sensor |
| Memory | FLASH: 256K |

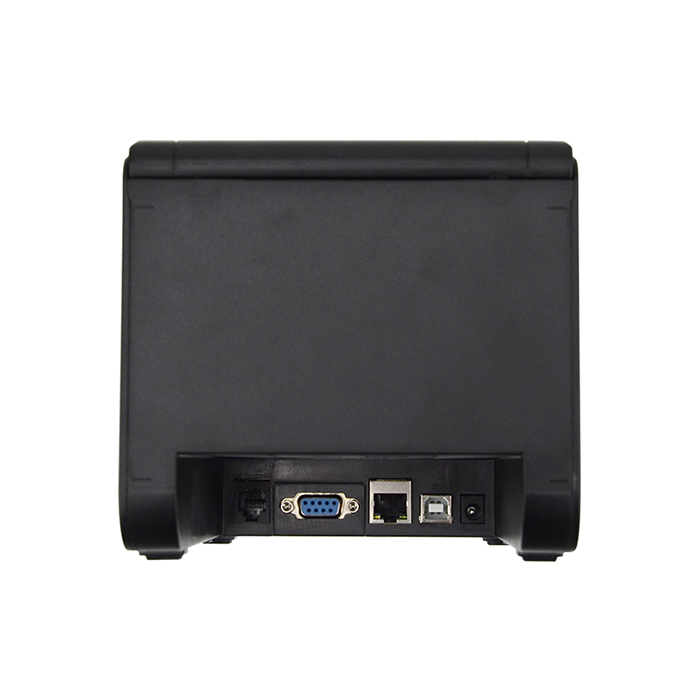

| Interface | Standard: Serial+USB+Ethernet+Cash drawer |
| Optional: | |
| USB+Bluetooth +Cash drawer | |
| USB+WiFi +Cash drawer | |
| USB+Bluetooth+WiFi+Cash drawer | |
| Graphics | Support different density bitmap printing |
| Barcode Type | UPC-A / UPC-E / JAN13(EAN13) / JAN8(EAN8) / ITF / CODABAR / CODE39 / CODE93 / CODE128 / QRCODE / PDF417 / Data Matrix |
| Character set | Standard: GB18030 Simplified Chinese |
| Optional: GB18030, Traditional Chinese BIG5, Japanese font, Korean KSC5601(One or more Character set supported) | |
| Character enlargement/rotation | 1 ~8 times enlargement in portrait and landscape orientation, rotating printing, inverted printing |
| Media type | Thermal roll paper (include environmental paper), Blackmark paper roll |
| Media width | 79.5士0.5mm |
| Media roll outer diameter | Max. 82mm |
| Media thickness | 0.06-0.08mm |
| Media handle | Partial-cut |
| Media output method | Top paper output |
| Sensor location | Middle |
| Wall mounting | Support |
| Power input | DC 24V 2.5A |
| Cash drawer output | DC 24V 1A |
| Working environment | 0~45℃, 20%~90% non-condensing |
| Storage Environment | -20~55℃, 20%~93% non-condensing |
| Printer weight | 1kg |
| Printer dimension | 140mm×178mm×130mm |
| Packing dimension | 260mm×160mm×151mm |
| Print head (reliability) | 150km |
| Cutter (reliability) | 1.5 million times |
| Printer certificate | CCC, CE, FCC, RoHS |
